100 ton low boy trailer for sale the best quality from China

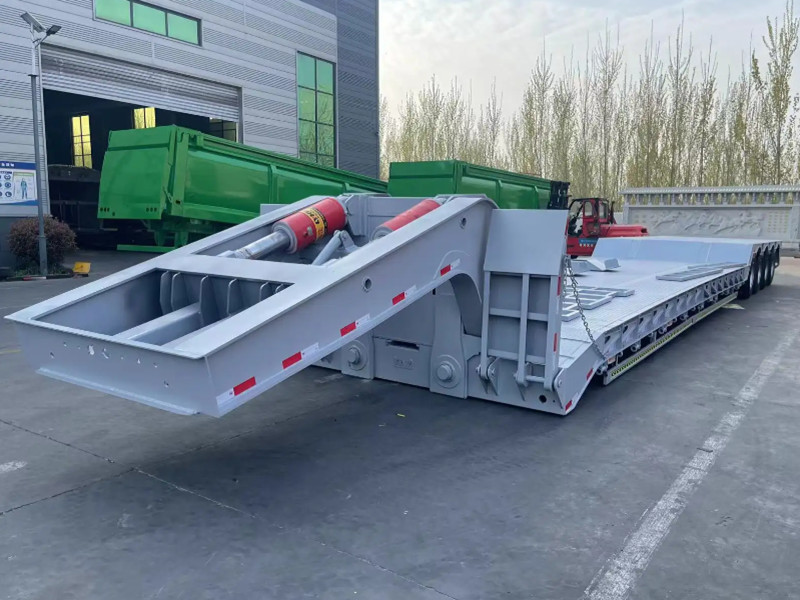

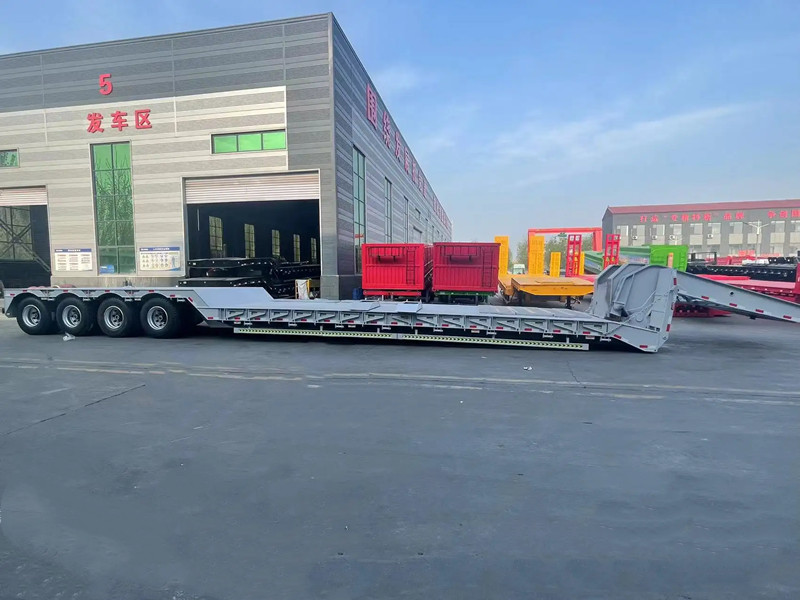

Features of our gooseneck detachable 100 ton low boy trailer,
1. The gooseneck is removable. This provides a low deck height. Enabling the transportation of tall loads while staying within legal height limits.
2. Low deck height design particularly useful for hauling tall equipment, such as excavators, bulldozers, or industrial machinery, as it reduces the overall height of the load.
3. Equipped with 4 axles to distribute the weight of heavy loads.
4. Constructed of high-strength steel to withstand the rigors of heavy hauling.

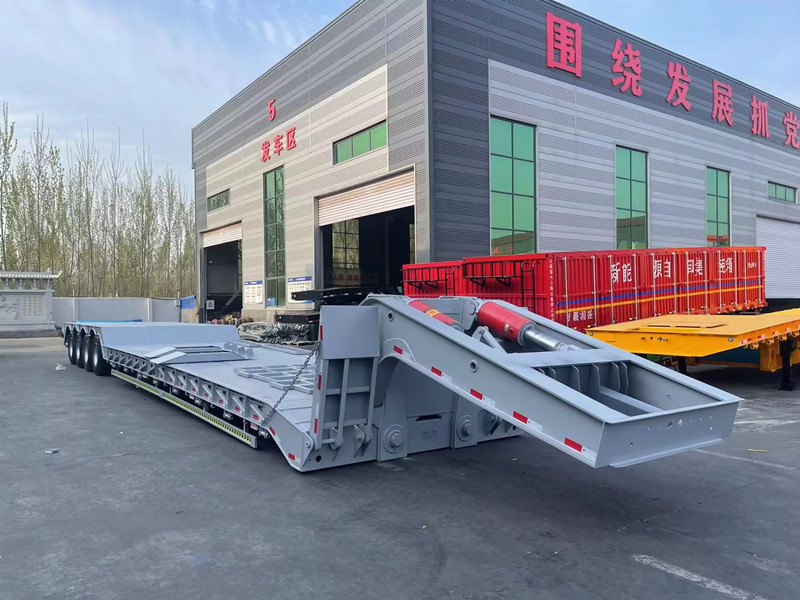

4 axle gooseneck detachable 100 ton low boy trailer specification,
Overall Dimension(mm) | 13000x3000x1650mm |
Working Deck Dimension(mm) | 9000x3000x1350mm |
Platform thickness(mm) | 4mm |
Main Beam | |
“H” main beam design, Q345B carbon steel, the height of the beam is 500 mm, upper plate is 16mm, down plate is 18mm, middle plate is 10 mm | |
Wheelbase | 7,650mm+1,310mm+1,310mm |
Payload | 60,000kg |
Axle number | 2- 4 or more |
Suspension | Common mechanical |
King Pin | 2″ or 3.5″ traction pin |
Wheel Rim | 8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice |
Steel Spring | 10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
Spare wheel carriers | 2 pcs |
Electrical system | |
One set 6-core electric cable protected by PVC conduit on main frame | |
Voltage: 24v , Receptacle: 7 ways (7 wire harness) | |
Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
