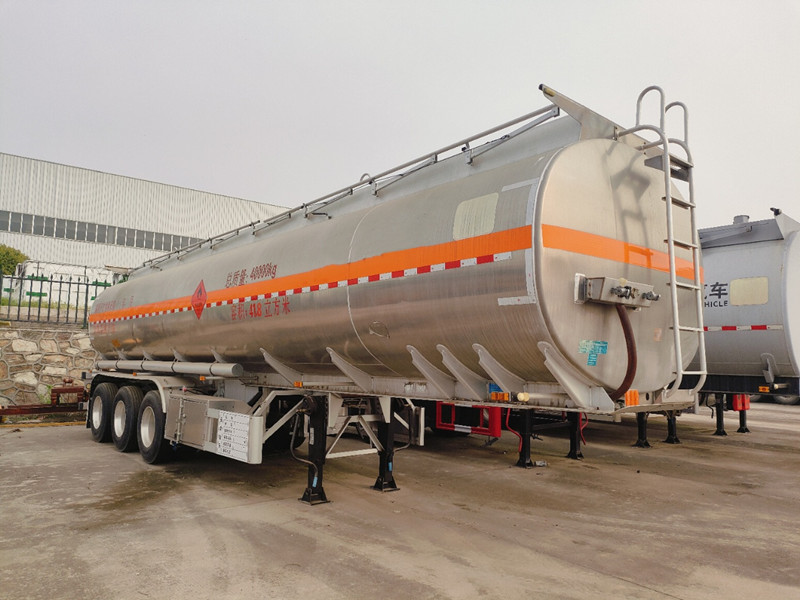

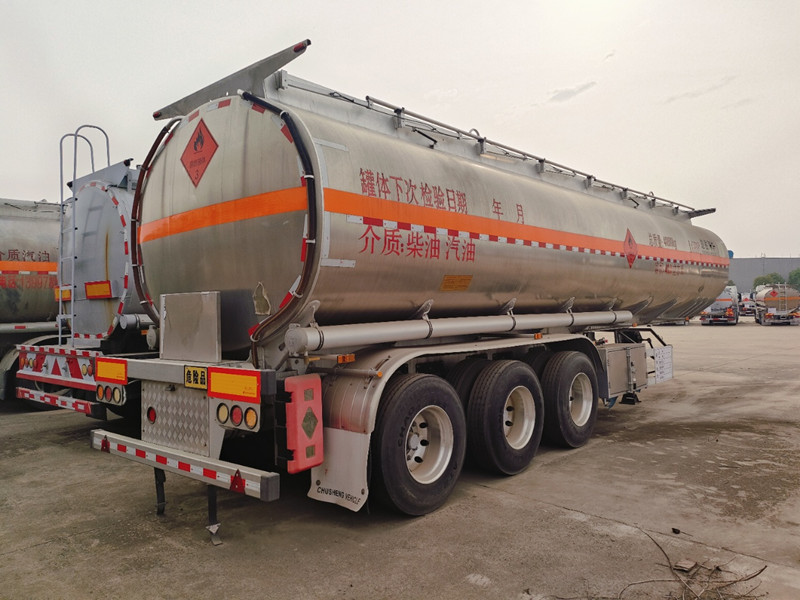

Air suspension 40cbm aluminum tank trailer with best price

Short Description:

Send email to us

Product Detail

Product Tags

Advantages of our 40cbm aluminum tank trailer for oil haulage

1. Light weight energy and cost saving.

2. Famous brand main parts with long service life

3. Aluminum manhole covers, aluminum discharge valves

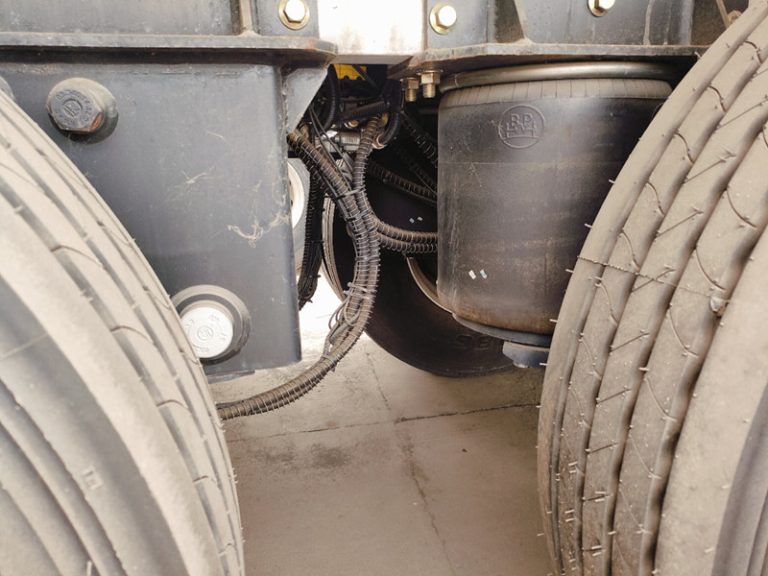

4. Air suspension with light weight and better travel performance

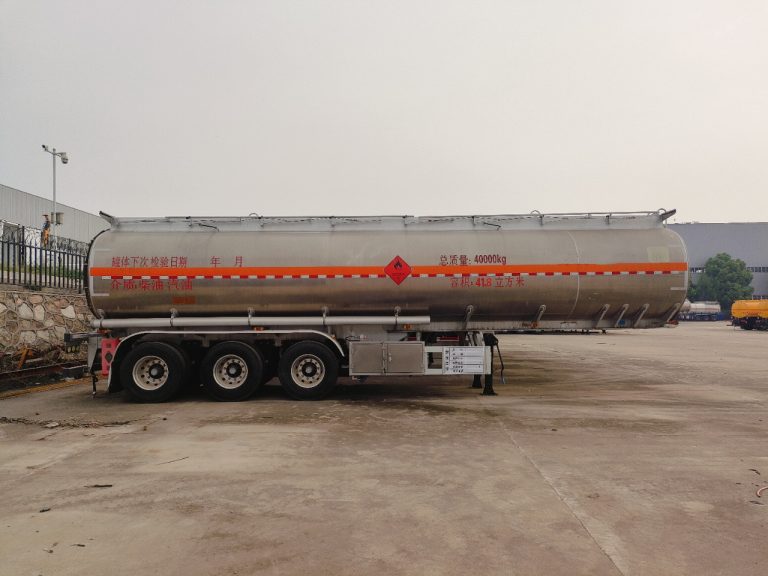

40cbm aluminum tank trailer with air suspension specification,

1. General Info:
Capacity:40cbm	40 cbm 40,000 liters
Compartment	1-6 compartments
Transport product:	All kinds of oil and fuel
Overall dimension:	1220025003600 mm (Final dimension depends on the final design drawing)
2. Tank shell
Material	Aluminum alloy
End plate	6mm
Tank shell & compartment divide	5 mm
Anti-wave Baffle	5 mm
Main beam	Standard features heavy duty frame welded to tank bottom
Roll-over coaming	Full length roll-over coaming for anti-fall protection on both side of tank top
Thermal insulation and heating system	With thermal insulation, steam coil system
Hydrostatic test	Pressure Testing – hydrostatic @ 35kpa (5 psi) each compartment
Painting	Aluminum alloy color
3. Components
Manhole cover	Aluminum alloy quick opening manhole cover, 4 pcs

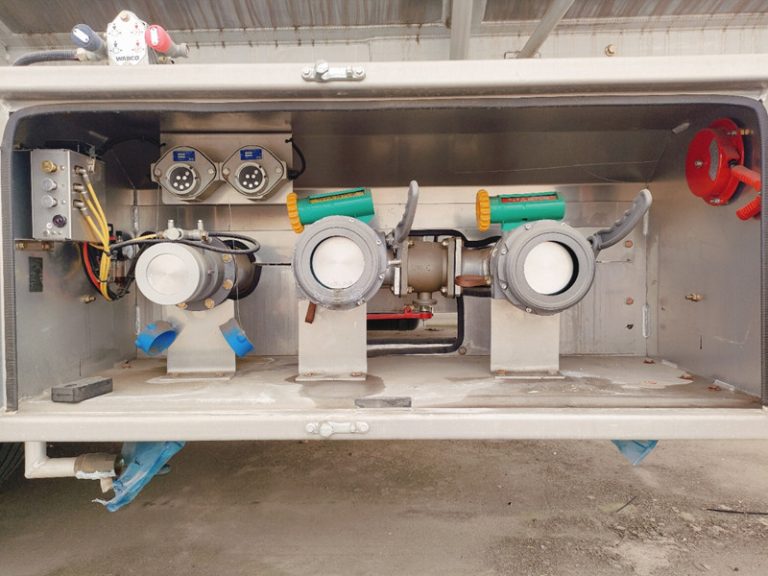

Discharge valve	4-inch aluminum valves, lockable discharge valve box.
Hose and hose carrier box	1 nos (LHS) and 1 nos (RHS) hose carrier to fit 3” x 6 meter hose.
4. Running gear
Kingpin / plate	3.5” or 2” king pin

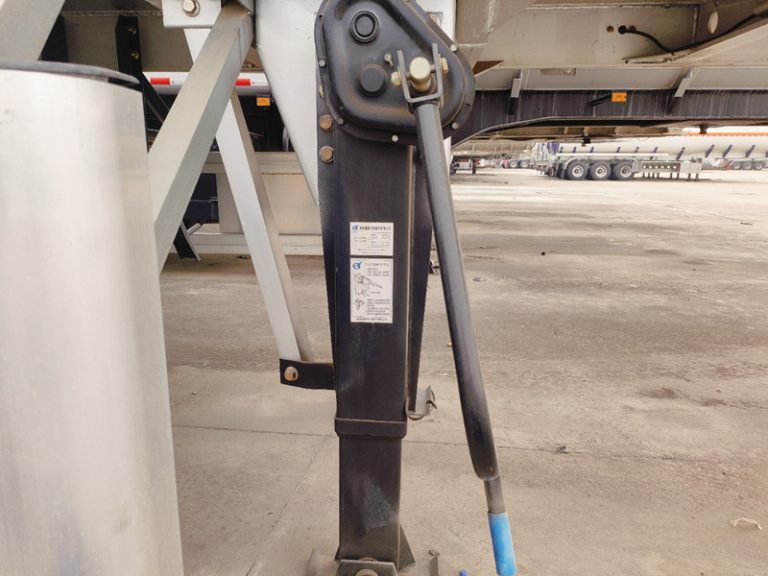

Landing gear	1 set 28 tons landing gear with two speed manual operation type
Axle	Fuwa brand 3 axles * 13 tons capacity
Suspension	Mechanical Reinforced Multi Leaf Spring. Suspension frame Mild steel fabricated for heavy duty usage.
Brake system	Dual line air brake system comprising of contact type coupling, brake chamber, emergency valve and air reservoir
Tires	12 pcs 12R22.5 tubeless tires
Rims	12 pcs 9.00*22.5 steel tubeless rims
5. Accessories

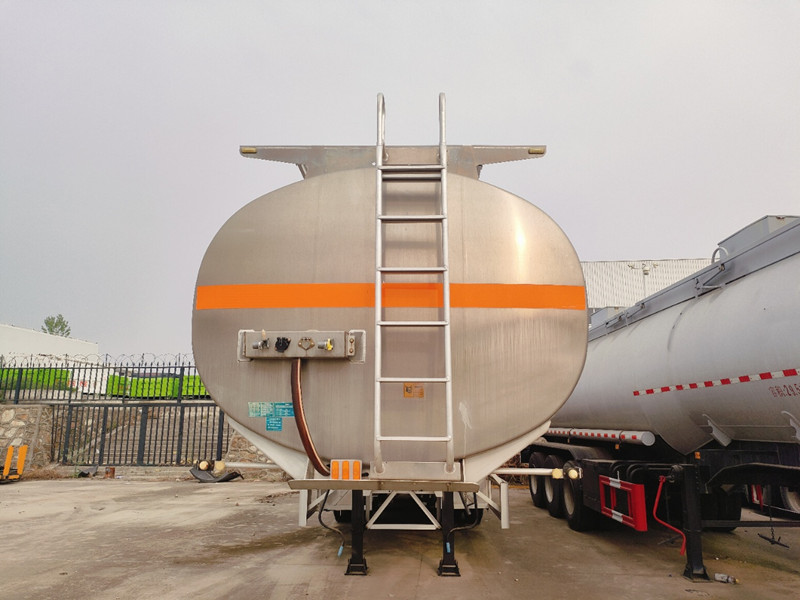

Access Ladder	Detachable steel fabricated with steps mounted at the rear of tank.
Walk way	Anti-skid walkway fitted with steel grating.
Safety handrail	Manual operated collapsible handrail fixed on the top of tank
Tool box	1 set lockable tool box
Side guard	Side Guard be provided made of steel material on both side of the tanker
Mudguard	Whole piece of steel plates type c/w mud flaps
Rear bumper	Steel bumper to accommodate light assembly and number plates to cover full width of the tank.
Fire extinguisher holder	2 pcs x8 kgs dry powder fire extinguisher.
Anti-Static System	Earthing strip to be installed at the rear of tanker. 1 Nos of grounding bounding reel.
ABS	Kormee 4S/2M
Light & Wiring	Standard front, side and rear. 24 volt system, 7 wires ISO socket. Red/brake, white/reverse and amber/direction indicator, LED tail lamp 8pcs side marker lamp
