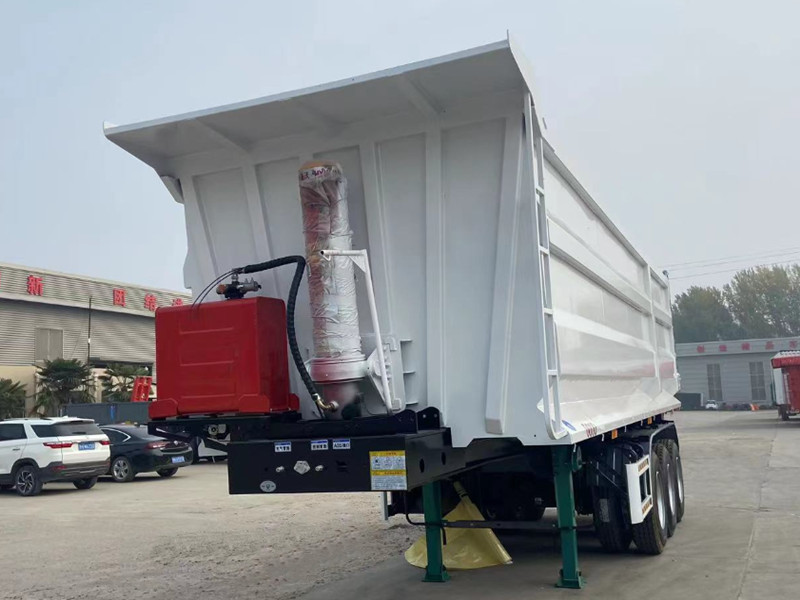

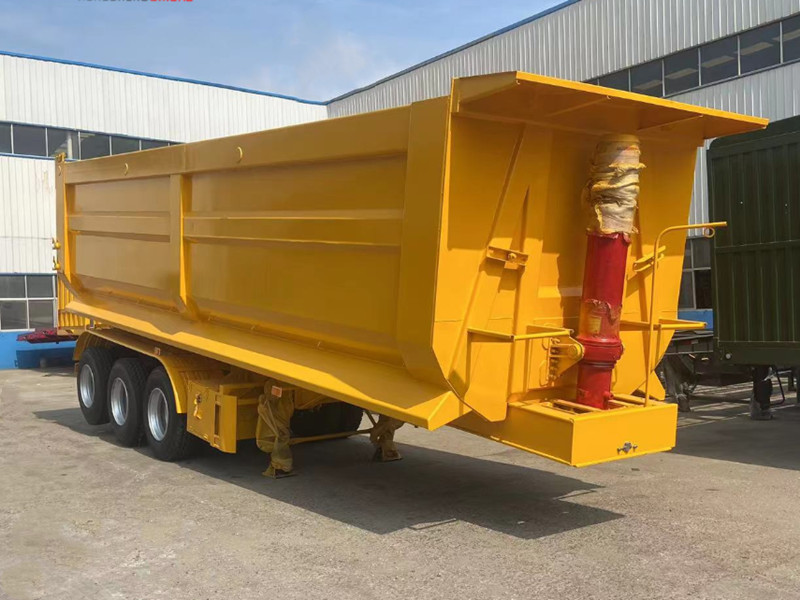

Top 35 Cubic End Dump Trailers: Best Semi Trailers from China
35 cubic mining end dump trailer features,
Chassis: Made of high tensile steel. Main beams are welded automatically by submerged welding machine.
Hydraulic cylinder: HYVA or equivalent brand.
Cargo body: Design according to customer’s usage. Can be carbon stell or hardox steel.
Tyre: Famous brand 12R22.5 or 385/65 R22.5 or 13 R22.5 or 315/80 R22.5
35 cubic mining end dump trailer specification,
Name | 35 cubic end dump trailer |
Usage | Quarry mining |
Floor thickness | 10mm |
Sidewall thickness | 8mm |
Axle | FUWA/BPW brand 13 ton |
Main beam | Height 500mm, upper plate 14mm, middle plate 8mm, lower plate 16mm |
Tires | 12R22.5 or 385/65 R22.5 or 13 R22.5 or 315/80 R22.5 |
Suspension | Mechanical or air suspension |
Landing gear | 28 ton |
King pin | Jost brand 2.0” / 3.5” bolt type king pin |
Braking system | Double air chamber, brake valve, 45L air tanks; abs optional |
Accessory | One tool box with standard tools |
Painting | Compete Chassis sand blasting to clean rust, l coat of anticorrosive prime, 2 coats of final painting. |
