Best Low Bed Semi Truck Trailers from China for Excavator Transport
Characteristics of wholesale ELITE excavators transport low bed semi truck trailer,
Chassis: High tensile steel. Main beams are welded automatically by submerged welding machine.
King pin: 2’’ or 3.5’’ king pin, SAE standard, bolted on or welding on type.
Brake system: Duel line brake system. WABCO or equivalent brand.
Electric system: 24 Volt lighting system with 7 pin socket, SAE standard.
Landing gear: Telescopic type, 2 speeds, manual operation. JOST or
equivalent brand.
Axle and suspension: 13T load capacity, 150 x 150 square axle, leaf spring. BPW, FUWA or equivalent brand

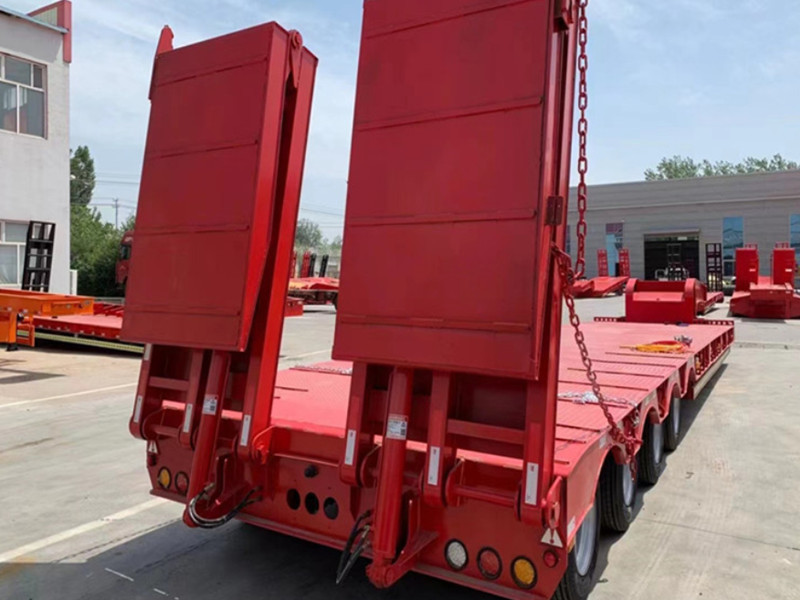

Ramps: 2 pieces, mechanic or hydraulic foldable ramps
Wholesale ELITE excavators transport low bed semi truck trailer specification,
Trailer Model | 60 ton excavator transport tri axle lowbed truck trailer wholesale |
Overall Dimension(LxWH) (mm) | 13,000×3,000×1,760 |
Function | Heavy duty machinery or equipment excavator transport |
Tare Weight(KG) | About 10,000 |
Loading Weight( KG) | 60,000 |
Axle | 3x13ton FUWA Axles |
Suspension system | Mechanical suspension |
Steel Spring | 10 pcs 90x13mm leaf spring, 6 sets |
The material of Main beam | The height of the beam is 500 mm, upper plate is 14mm, down plate is 16mm. |
Platform plate | 4mm checked plate |
Tire Type and quantity | 8.25/20 China famous brand |
Traction Pin | 90# |
Spare Wheel Bracket | 1 pc |
Tool Box | 1 Standard |
Landing Gear | 28ton landing legs |
Brake system | Dual Line braking system, none ABS. |
Brake air chamber | Double air chambers |
Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
One set 6-core standard Cable. | |
Side Guard | According to customer’s requirement |
Painting | Paint: Epoxy primer + polyurethane topcoat |
