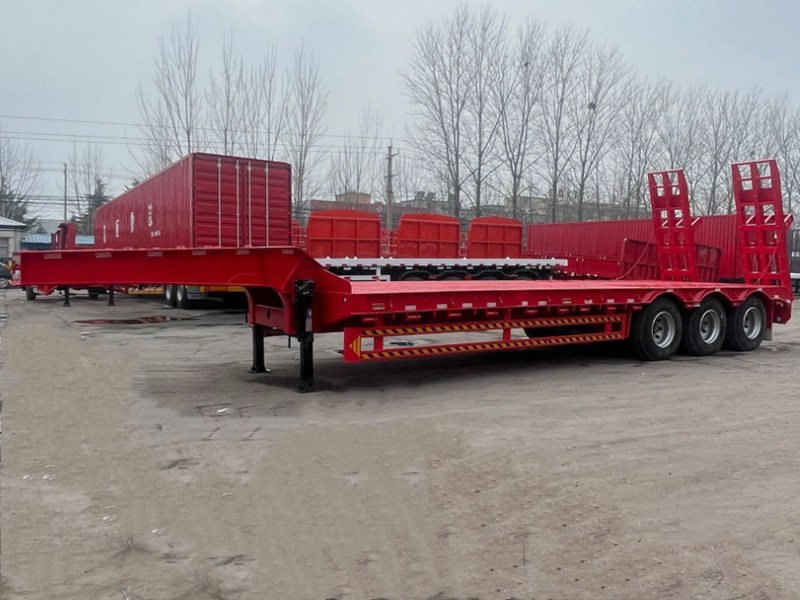

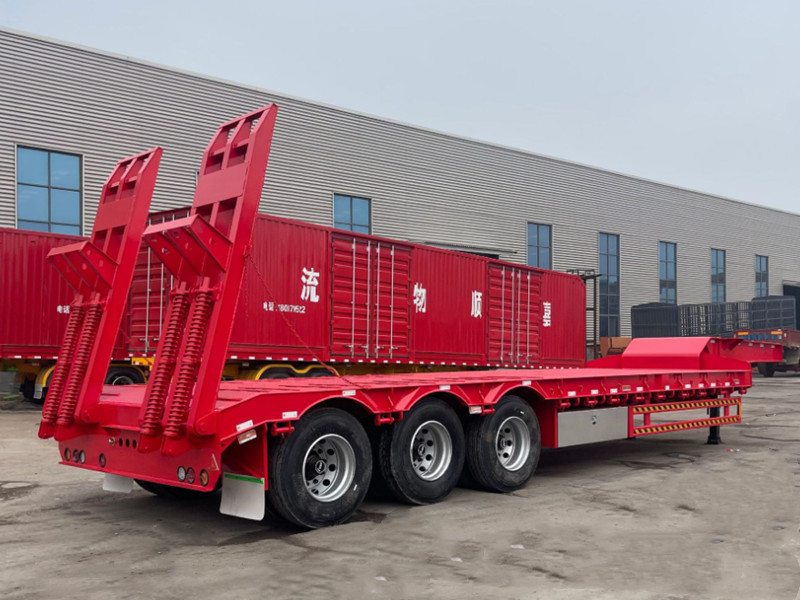

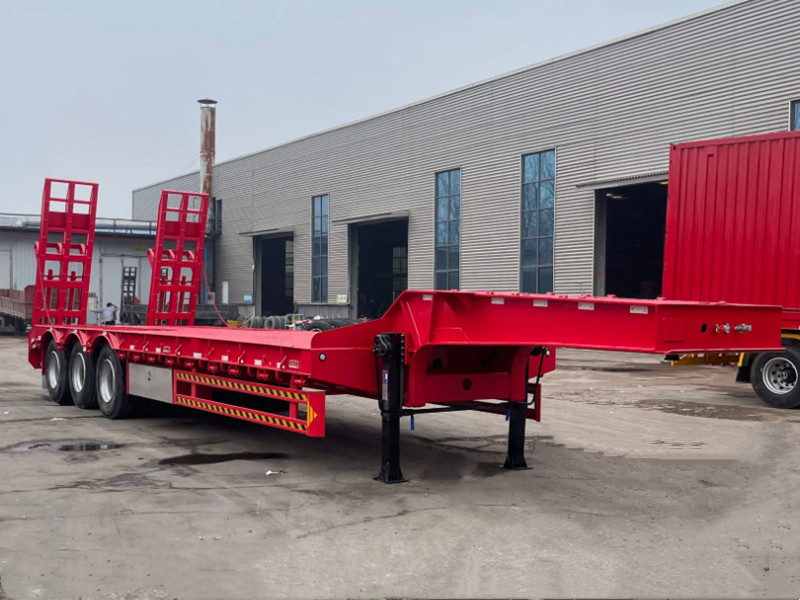

lowbed trailer for high loads 3 axles low bed semi trailer
ELITE heavy duty lowbed trailer for high loads features,

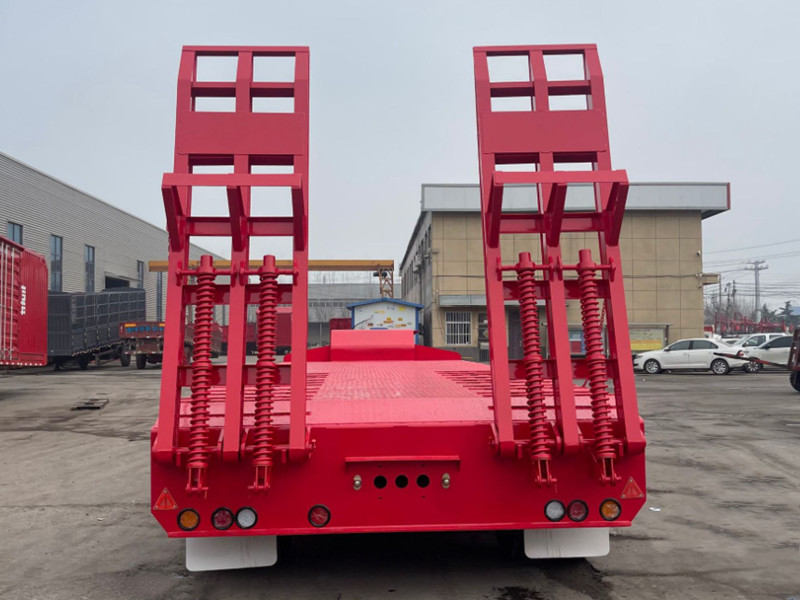

The ELITE heavy duty lowbed semi trailer is mainly used for heavy duty machinery excavator transport. Designed with mechanical or hydraulic ramps for excavators site to site transport. It is manufactured with high tensile steel, famous brand top quality axles, landing gear and brake parts. Features with good price and long service life.
ELITE heavy duty lowbed semi trailer specification,
Trailer Model | Heavy duty lowbed semi trailer |
Overall Dimension(LxWH) (mm) | 13,000×3,000×1,760 |
Function | Heavy duty machinery or equipment excavator transport |
Tare Weight(KG) | About 10,000 |
Loading Weight( KG) | 60,000 |
Axle | 3x13ton FUWA Axles |
Suspension system | Mechanical suspension |

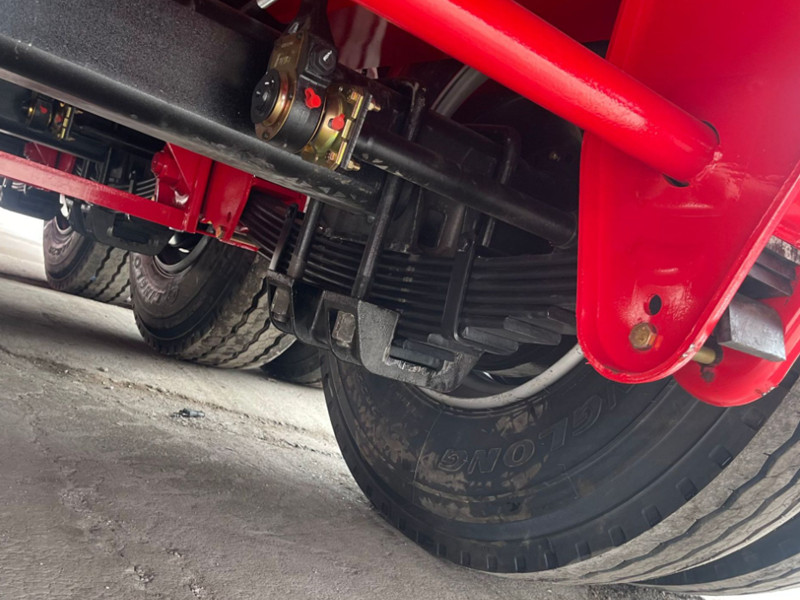

Steel Spring | 10 pcs 90x13mm leaf spring, 6 sets |
The material of Main beam | The height of the beam is 500 mm, upper plate is 14mm, down plate is 16mm. |
Platform plate | 4mm checked plate |
Tire Type and quantity | 8.25/20 China famous brand |
Traction Pin | 90# |
Spare Wheel Bracket | 1 pc |
Tool Box | 1 Standard |
Landing Gear | 28ton landing legs |
Brake system | Dual Line braking system, none ABS. |
Brake air chamber | Double air chambers |
Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
One set 6-core standard Cable. | |
Side Guard | According to customer’s requirement |
Painting | Paint: Epoxy primer + polyurethane topcoat |
