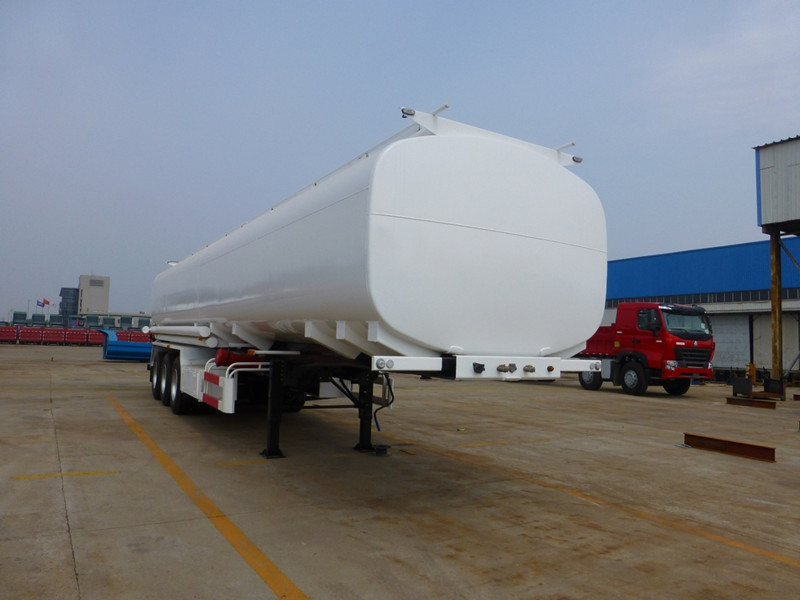

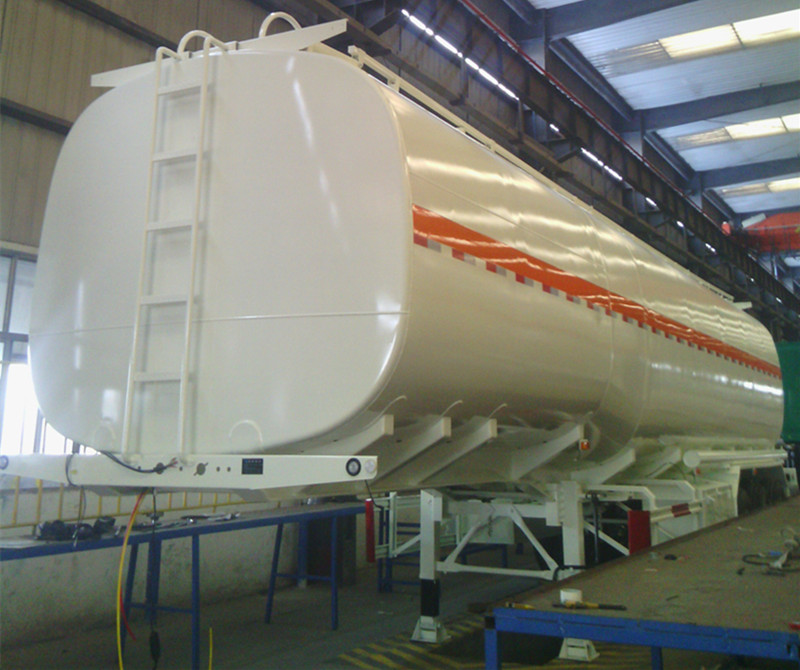

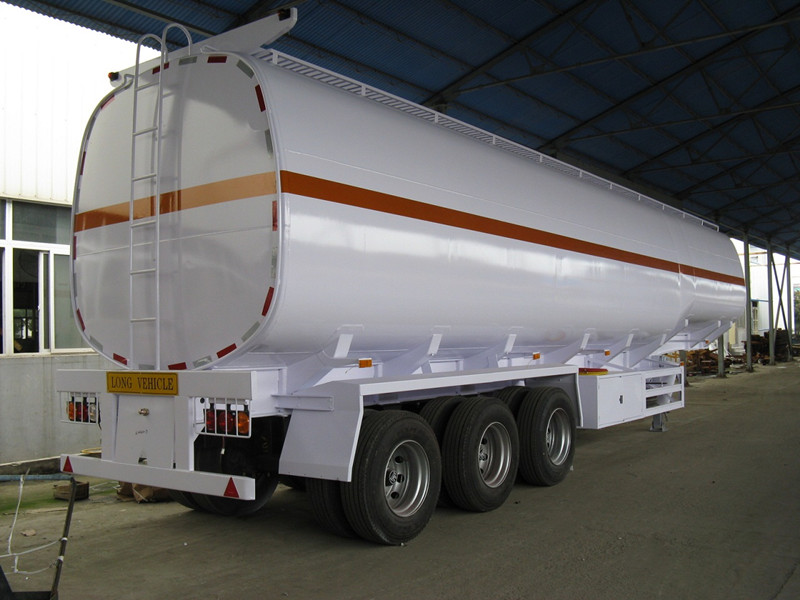

Best 3 Axle 10,000 Gallon Petrol Tanker Trailer from China
Characteristics of our 10,000 gallon petrol tanker trailer,
Latest design with light weight and maximum volume.
LED lights, safety markers, fire extinguishers to guarantee the safety.
High standard manhole covers with breathe valve.
Strong frame with durability and long service life.
Electrical operating top cover and first axle lifting as option
10,000 gallon petrol tanker trailer specification,
Overall Dimension | 12500x2500x3600mm |
Thickness | Tank body: 6mm End plate: 6mm Wave-proof plate: 3mm |
Tare weight | About 8000kg |
Capacity | 10,000 gallon |
Axle | FUWA brand, 3*13ton |
Compartments | 1-6 compartments |
Manhole cover | Manhole cover: 500mm 2 sets with 2 breath valves |
Discharge valve | 3 inch valve, 2 sets |
Discharge pipe | 4 inch seamless steel tube |
Pump | With pump |
Suspension | Heavy spring mechanical suspension |
Emergency valve | Bottom valve, 1 set |
Leaf Spring | 10/10 |
Tire | 11.00R20, 12 pcs |
Kingpin | 90mm |
Landing Gear | JOST brand 28T |
Brake system | 2 line pneumatic brake system. Type 30/30 spring brake system on two axles. ISO type air coupling at front of the semi-trailer. With ABS. |
Brake chamber | 4- Double |
Electrical system | Voltage: 24V Receptacle: 7 ways (7 wire harness) |
LED lamps. Side: reflectors (orange). Rear: direction indicators (orange) /brakes (red)/rear warning (white). | |
Tool Box | 1 pc |
Spare Tire carrier | 2 pcs |
Color and marking | By customers’ requirement |
Petrol tanker trailer break bulk shipping,
